It has been discovered recently that the nine electrolytic capacitors CE18, CE19, CE20, CE21, CE22, CE25 , CE38, CE39, CE45 (see Figure1, used at power stabilization circuitry) may expand and fracture. This problem has been confirmed to result from quality control of RLZ 0333 capacitors, and proven to happen only on a small number of such capacitors which can be easily distinguished from the RLZ 0333 marking (see Figure 2) on them.

If you need further support after finding RLZ 0333 capacitors at these nine locations, or experiencing symptom as described above on K8V Deluxe motherboards, please kindly contact your place of purchase, supplier, or the nearest ASUS service centre for immediate follow-up.

(December 04, 2003)

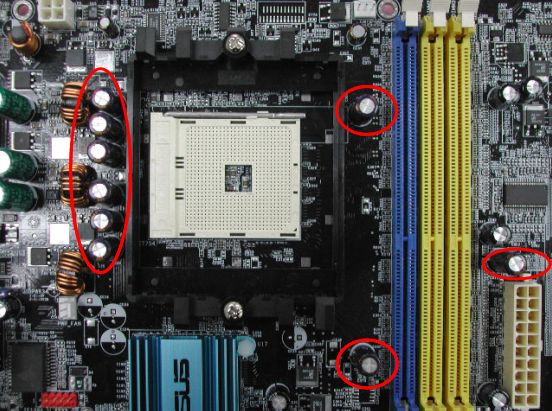

Figure 1



Figure 2
